China Steel Structure Prefabricated Villa House with Low Cost

China Steel Structure Prefabricated Villa House with Low Cost

Description:

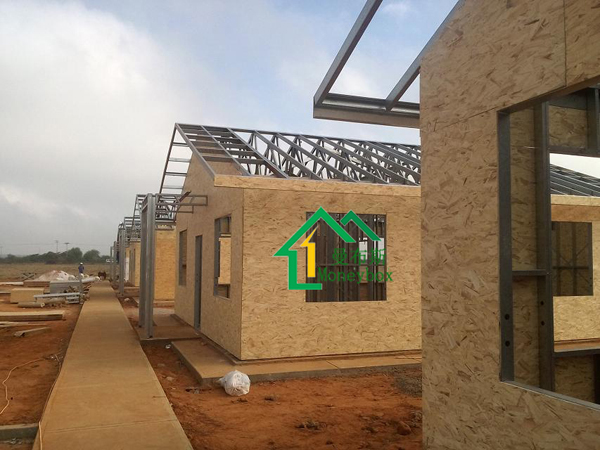

Roof structure: light gauge steel truss system

Main structure: light gauge steel framing system

Cladding: PU insulation steel sandwich panel

Interior lining: fiber cement board

Insulation: high performance glass wool

Flooring: wooden or bamboo flooring

Ceiling: PVC ceiling panel

Lighting: CE, AS/NZS, UL standard light, others are available

Exterior Door: Aluminum sliding door

Keyword: Light Steel Prefab Modular Homes

Applications:

 Carport, Hotel, House, Kiosk Booth, Office, Sentry Box, Guard House, Shop, Toilet Villa, Warehouse, Workshop, Plant

(1) Steel Structure

Light Gauge Steel Villa is more stable than the one that made of welding frame steel . Besides, it is cheaper, more economic. With long lifespan,  which can last almost 70 years, all the materials of light guage steel villa is Q550.  It is locked with bolts, which can be used repeatedly without any maintenance.

(2) Flooring

Decoration:PVC flooring,carpet,laminated flooring ,solid wood flooring

Floor:Plywood ,galvanized deck +concrete,calcium silicate board

Insulation layer:glass wool

Floor purlins:rectangular pipes and C-shaped steel

Floor beam:rectangular tube,pipe truss,truss angles ,hot-rolled steel H

Ceiling:calcium silicate ceiling

(3) Windows and Doors

Windows: Double glazing plastic-steel or aluminum alloy thermal-insulating frames

Doors: steel security gate doors; wood or molded doors

(4) Composite Wall System (thickness:150-250mm)

Decorative layer :PVC cladding ,PU metal cladding ,single metal cladding ,calcium silicate board

Insulation:EPS sandwich panel,PU sandwich panel ,glass wool sandwich panel

Ring beam:Cold rectangular tube ,pipe truss.

Steel column:Cold rectangular pipe,hot rolled steel H
