Quick build mobile foldable container house

  • Item Number: CN031
  • Port: Guangzhou/Shenzhen
  • Payment: T/T,L/C,Western Union
  • Color: White
  • Lead Time: 7 Working days after deposit.
  • Contact Now
  • Product Details




Product Description

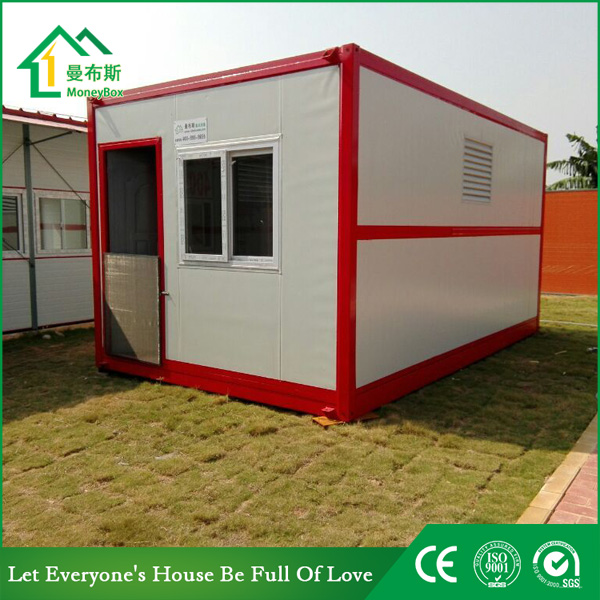

Foldable Container House



Standard size 5700mm*2500mm*2547mm
Color Decided by customers
Column Double 8#C steel
Frame of roof and tottom 8#C steel
Roof Color-steel Sandwich Panel (EPS 50mm) PS: customers can choose other sandwich panel material.
Wall Color-steel Sandwich Panel (EPS 50mm) PS: customers can choose other sandwich panel material.
Door Frame steel sheets
Door 2000mm*790mm iron security door or PVC door, Aluminium
Window PVC Window
Flooring 12-15mm plywood
Earthquake proofing Grade 9
Fire Proofing:   Yes
Wind Proofing

Grade 11






Specification



container house parameter
PARTS flat pack/folding container house Detachable container house shipping container house
Top frame channel steel (it depend on size or length of the container house) The strucutre is all detachable,
it is ont flat pack
brand new real shipping container,
no need assembly
Bottom frame
Column

blending plate


made by square tube
Corner fitting made by square tube made by square tube made by square tube
Wall pannel 50mm EPS (or glass wool,Mgo,PU,etc)
sandwich panel with 0.426 color sheet
50mm EPS (or glass wool,Mgo,PU,etc)
sandwich panel with 0.326 color sheet
50mm EPS (or glass wool,Mgo,PU,etc)
sandwich panel with 0.326 color sheet
Roof pannel 50mm EPS (or glass wool,Mgo,PU,etc)
sandwich panel with 0.426 color sheet+
0.326 single color tile (for water proof)
50mm EPS (or glass wool,Mgo,PU,etc)
sandwich panel with 0.326 color sheet
50mm EPS (or glass wool,Mgo,PU,etc)
sandwich panel with 0.326 color sheet
DOOR 790mmx2000mm eps door
(or customized material)
790mmx2000mm eps door
(or customized material)
790mmx2000mm eps door
(or customized material)
Window 1130x1200mm plastic steel window
(or customized material)
1130x1200mm plastic steel window
(or customized material)
1130x1200mm plastic steel window
(or customized material)
WATER & SEWER

Hot water pipe

Hot water pipe Hot water pipe
Cold water pipe

Cold water pipe

Cold water pipe
ELECTRICS Electric wire  Electric wire Electric wire
Strong electricity control cabinet Strong electricity control cabinet Strong electricity control cabinet



Widely used



1.Emergency Rescue in earthquake, typhoon and other disasters,

2.Military Materials reserve and Medical emergency reserve

3.Construction set(High way,Railway and other types)

4.Oil&Gas Field & Mineral Industry

5.Refugee Camp

6.Grocery store and other fuctional houses in scenics.

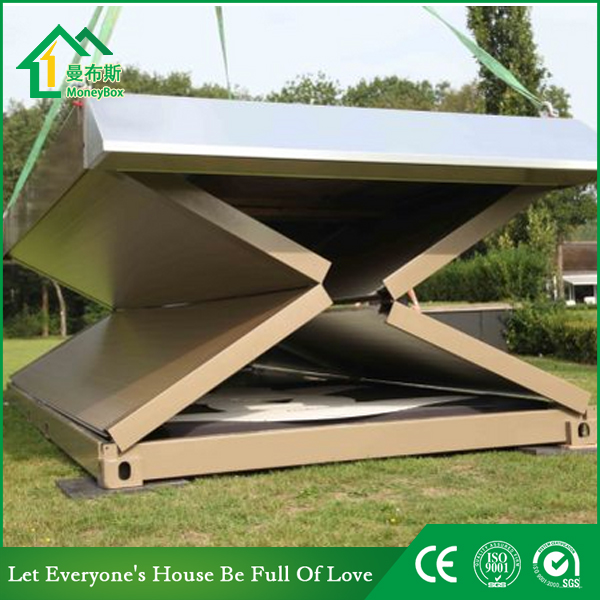

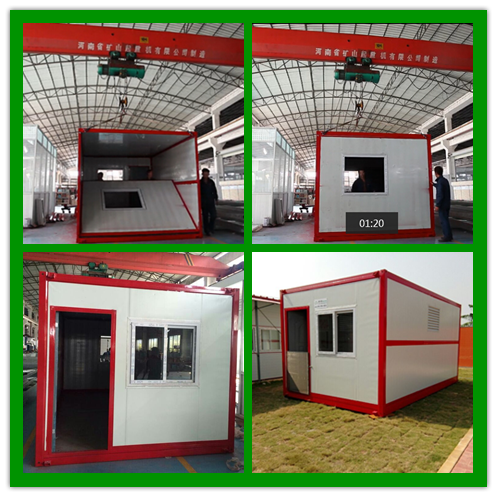

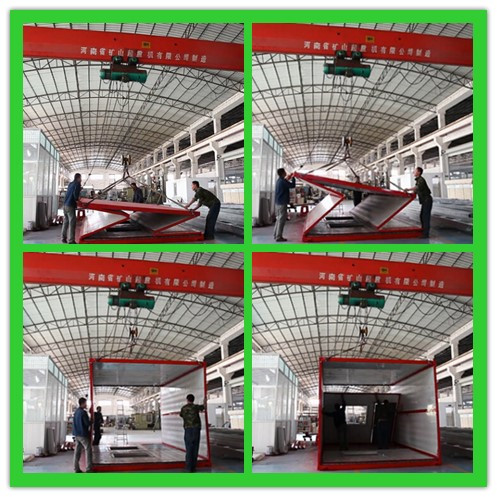

 Picture Show

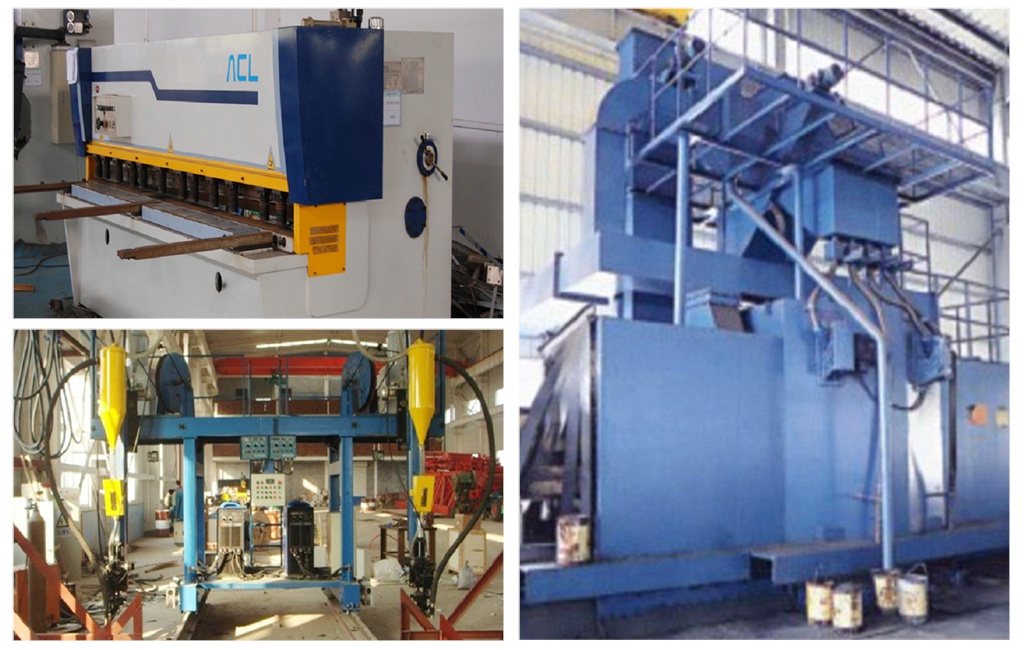

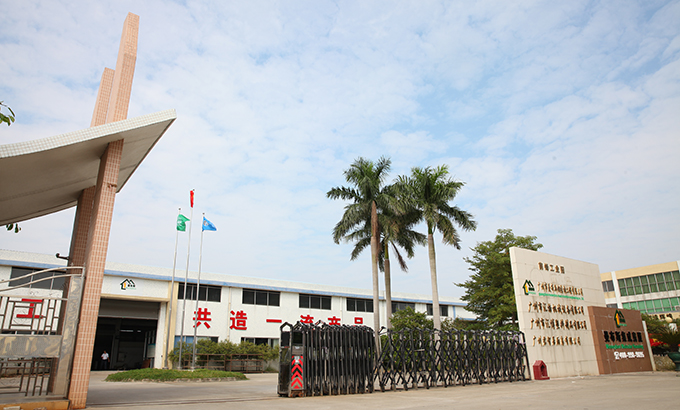

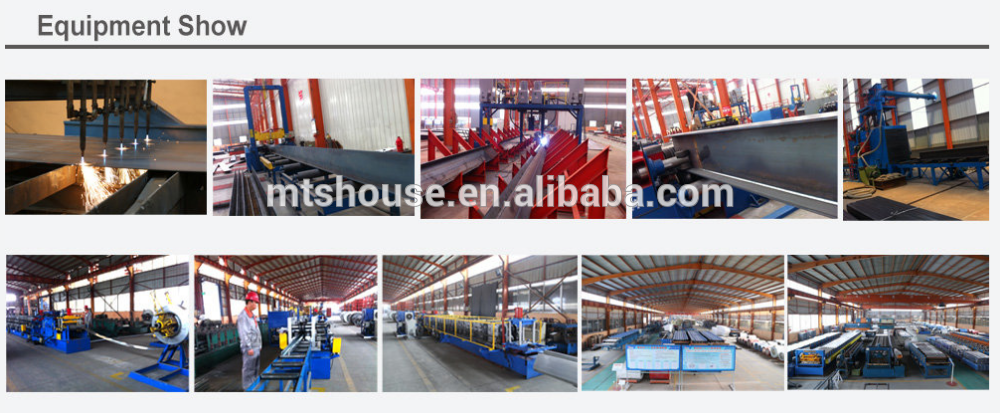

Company show
