20ft Flat Roof Container carpot with CE,CSA&AS Certification

  • Item Number: CN007
  • Port: Guangzhou/Shenzhen
  • Payment: T/T,western Union,L/C
  • Color: White
  • Lead Time: around 7-15 working days upon deposit
  • Contact Now
  • Product Details

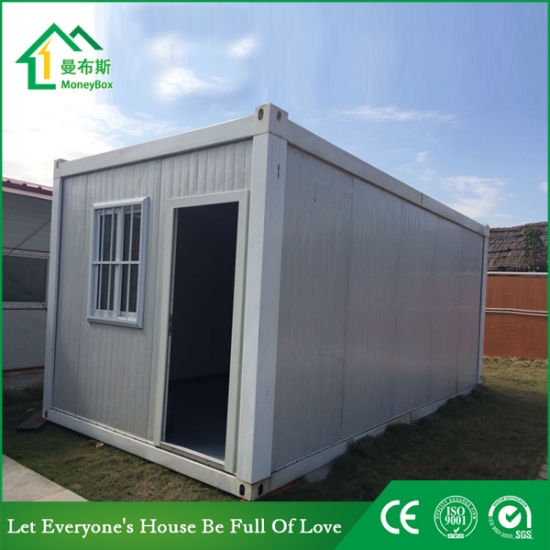

20ft Flat Roof Container carpot with CE,CSA&AS Certification



Flatpack container carpot is modified by Prefab Flatpack container house.It is consists


of top frame, bottom frame, 4 posts and 14 pieces exchangeable wall panels. It can be flattened


for easy transporting.




Product Description




Features of  Flatpack Container Carpot


1) Good ability to assemble and disassemble for several times without damage for Flatpack container carpot.

2) Could be lifted, fixed and combined freely.

3) Flatpack container carpot is insulation and waterproof.

4) Cost saving and convenient transportation( each 4 sets of  Flatpack container carpot can be loaded in one 20GP standard shipping container,8sets of 40HQ).

5) Using life is at least 15 years.

6)Cyclic and durable.

7) We can provide the service of installation, supervision and training of Flatpack container carpot by extra.


Usage

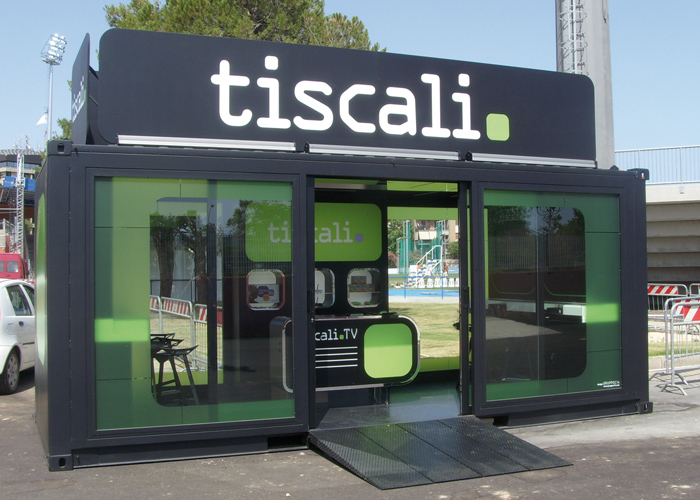

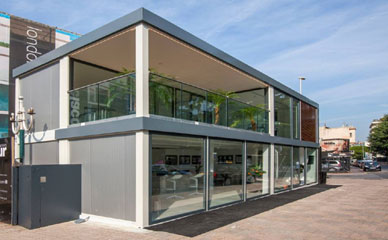

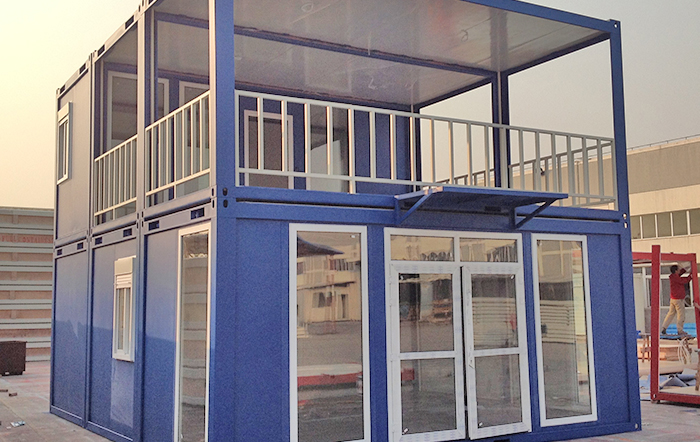

Container houses are widely used as temporary office,  temporary office, meeting room , headquarters , public accommodation , and temporary store , school, hospital ,hotel,residensial type, parking lots, show rooms,electric house , repairing shop , gas station ,integral kitchen,bathroom,etc.





Technical parameters


Roof load:80kg/m2

Wind resistance:grade 10

Earthquake resistance:grade 9



 Specification:


Item

Specification

Frame

5800 mm * 2250mm * 2800 mm

Cold formed 3-4mm Q235 Steel

Floor

 · flat galvanized & painted steel sheet

·100mm non-combustible mineral wool

·Customized PVC or cement floor

Roof

 flat galvanized & painted steel sheet

·100mm non-combustible mineral wool

·one set CE electronic installation

Door

 ·Single fold, 50mm thick

·Insulated with EPS foam with a handle lock

· Opening dimensions of 808×2030mm,

· Net opening dimensions: 754 x 1985 mm.

Wall panel

 · galvanized & painted steel sheet

·50mm EPS/Rock wool /PU sandwich panel

Window

 PVC, white color, 800×1100mm, glazed with double layer glass with sliding mechanism (one side fixed and one sliding).

More optional types for your specific needs.
