20ft Dismantled Container House with CE

  • Item Number: CN017
  • Port: Guangzhou/Shenzhen
  • Payment: T/T,L/C,Western Union
  • Color: White
  • Lead Time: 7Working days after deposit.
  • Contact Now
  • Product Details

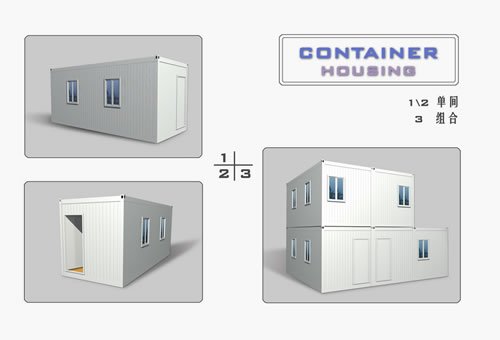

20ft Dismantled Container House with CE Certificate



Dismantled container house is one type of container house.

Its structure are connected by bolts.EPS sanwich panel for wall panel.Low cost and easy build.It is widely used in temporary housing, refugee housing, temporary offices etc.


Features of  Dismantled Container House

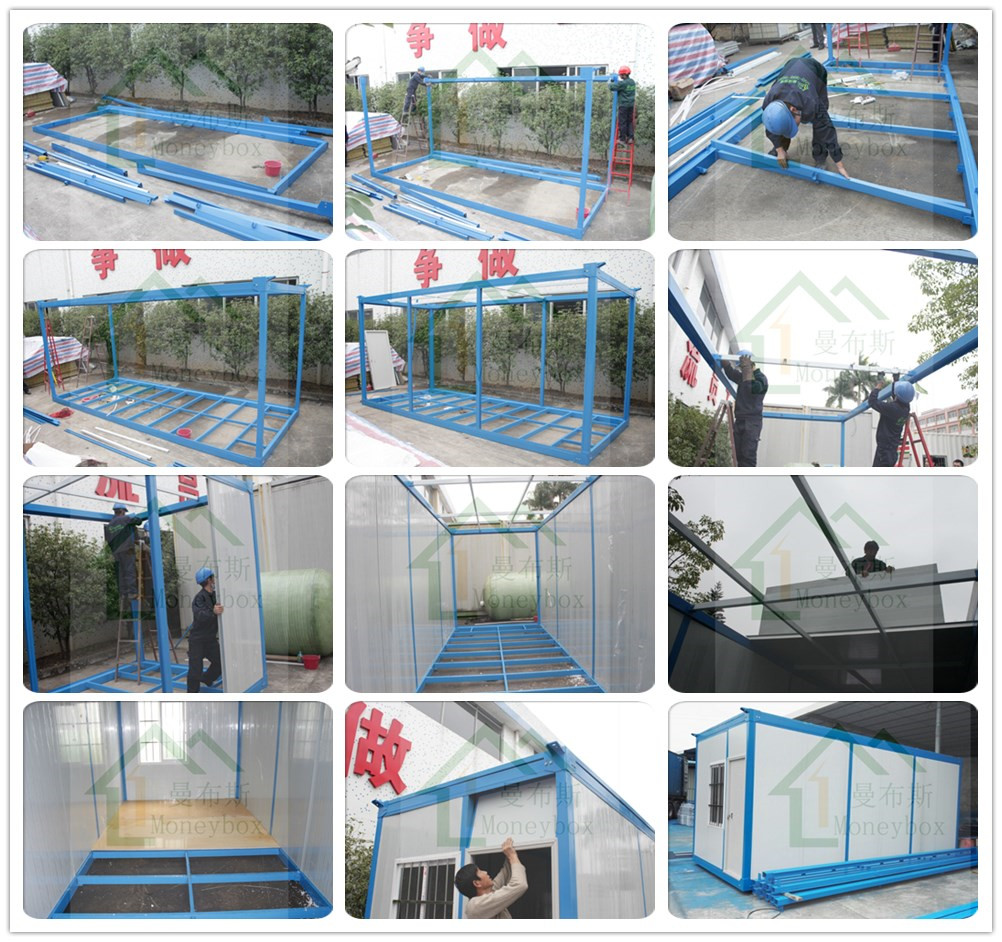

1) Good ability to assemble and disassemble for several times without damage for dismantled container house.

2) Could be lifted, fixed and combined freely.

3) Dismantled container house is insulation and waterproof.

4) Cost saving and convenient transportation( each 6 sets of dismantled container house can be loaded in one 20GP standard shipping container,14sets for 40HQ).

5) Using life can at least 15 years.

6)Cyclic and durable.

7) We can provide the service of installation, supervision and training of dismantled container house by extra.

8)All the house structure are connected by bolts.



Usage

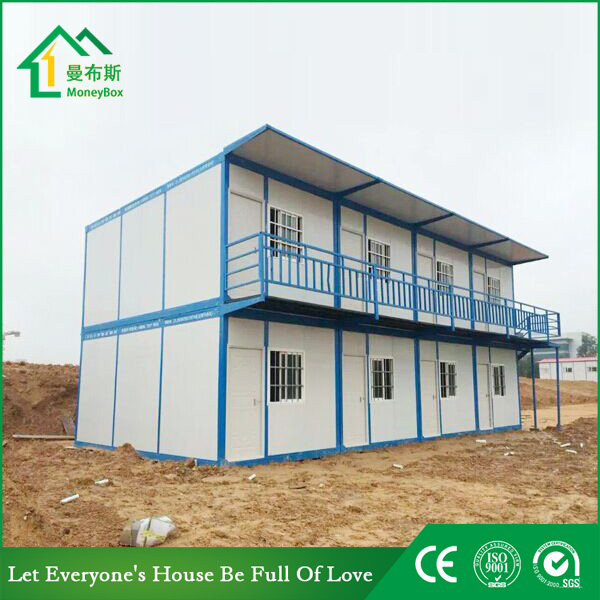

Dismantled Container Houses are widely used as portable toilet, Classroom,Refugee House, temporary office, accommodation,integral kitchen,bathroom,etc.


Technical parameters


Roof load:80kg/m2

Wind resistance:grade 11

Earthquake resistance:grade 9


 Specification:

Item

Specification

Frame

3000 mm * 6000mm * 2700 mm

Cold formed 1.6-2.0mm Q235 Steel

Floor

 · flat galvanized & painted steel sheet

·100mm non-combustible mineral wool

·Customized PVC or cement floor

Roof

 flat galvanized & painted steel sheet

·100mm non-combustible mineral wool

·one set CE electronic installation

Door

 ·Single fold, 50mm thick

·Insulated with EPS foam with a handle lock

· Opening dimensions of 808×2030mm,

· Net opening dimensions: 754 x 1985 mm.

Wall panel

 · galvanized & painted steel sheet

·50mm EPS/Rock wool /PU sandwich panel

Window

 PVC, white color, 800×1100mm, glazed with double layer glass with sliding mechanism (one side fixed and one sliding).

More optional types for your specific needs.
